BLOWERS

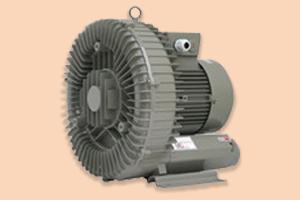

Side Channel Blowers

We are Manufacturers of Side Channel Blowers / Lateral Channel Blowers
The Side Channel Blowers / Lateral Channel Blowers are suitable for all those applications requiring considerably higher pressure, than those which can be achieved using centrifugal blower.

 Power Rating :  0.20kw To 25kw
 Maximum Flow :  2050 M3/hr
 Maximum Pressure :  670 Mbar
 Maximum Vacuum :  460 Mbar

Features Of Blowers


Side Channel Blowers / Lateral Channel Blowers Data Summary

The Side Channel Blowers / Lateral Channel Blowers are suitable for all those applications requiring considerably higher pressure, than those which can be achieved using centrifugal fans. Side Channel exhausters are used in all those applications requiring an operating vacuum higher than the one achievable by a fan, but not as to require the use of a vacuum pump. The rotating parts are not in contact with the casing. There is, therefore, no friction during operation and thus no internal lubrication is necessary. The other main features are:

  • Higher Pressure Ratio
  • 100% Oil-Free Continuous High Pressure Air Flow
  • Blower Can Be Used For Pressure Or Vacuum Applications
  • Low Noise Level (65dba Normal, 85 dba Max.)
  • 110% Overload Protection
  • ±10% Voltage Fluctuation Tolerance
  • Rated For Continuous 24 X 7 Duty
  • IP 55 Protection
  • Class F Insulation
  • Motor Design compatible with VFD Drive For Easily Accommodating Operating Condition Changes
  • Impeller Directly Mounted on Motor Shaft Eliminates Maintenance Issues Like Change Of Gears, Pulleys, Belts
  • Pressure Die Casted Aluminum Alloy Body, Impeller & Rotor
  • Dust Proof Polymer Shaft Seal
  • Low Temperature Rise
  • Pulsation- Free Discharge
  • Light And Compact But Sturdy Aesthetically Appealing Design
  • CNC Machined For Close Tolerances And Better Performance
  • Dynamically Balanced Impeller Assembly For Longer Vibrations Free Life
  • High Temperature Grease Filled And Double Sealed NSK/SKF Bearings
  • For Trouble Free Operation For Long Periods
  • Space Efficient Easy Installation In Vertical Or Horizontal Position
  • With Built In Inlet And Outlet Silencers
  • Minimal And Simple Maintenance
  • Suitable For Environmental Protection

Application Of Blowers


The Side Channel Blowers / Lateral Channel Blowers are suitable for very wide field of application some of them are

  • Waste Disposal / Slurry Declogging In Waste

  • Pneumatic Conveying of Solids / Liquids

  • Vacuum Transfer of Components / Sheets / Liquids

  • Blowing Away Debris / Sucking Away Debris

  • Industrial Vacuum Cleaning

  • Furnace Fuel Burning / Oil Atomization

  • Air Bearing / Air Mattress

  • Medical / Dental Suction Units

  • Air Sampling / Monitoring Equipments

  • Cable Pressurization

  • Liquid / Semisolid dispenser

  • Food Processing and Packaging Applications

  • Sorting / Counting of Cards / Envelopes / Papers

  • Beverage Bottling / Labeling / Drying/Ink Jet Coding

  • Safe and Economical Personal Cleaning Solutions

  • Environmental / Pollution Control and safety equipments

  • During Printing Feed / Transfer of Paper Sheets / Ink Drying

  • Agitation of Liquid Bath for Vegetables and Fruits Washing

  • Provide Air Cushion to Handle Delicate Material like Eggs / Glass

  • Air Curtain, Protection from Dust Ingress and Isolation applications

  • Agricultural Pesticides and Fertilizer Mixing and Spraying Applications

  • Keeping Yarn / Threads / Product in place during processing / sewing / knitting

  • To Suck Debris / Gases from Clean Rooms / Enclosed Spaces /
    Tunnels / Laboratories

  • To Agitate and Aerate Water in Spa / Whirlpool/ Swimming Pool / Fishing Tanks / Aqua Culture Tanks / Plating Tanks / Concrete / Laundry

BLOWERS FOR SEWAGE TREATMENT PLANTS


Our blowers based solutions for sewage treatment plants, are most energy and capital cost savings and compact set ups.Further more, they are clean, environment friendly, noiseless and maintenance free.


BLOWERS FOR WASTE TREATMENT PLANTS


Wastewater treatment requires continuous stream of clean air,at medium pressures. Our blowers steadily delivers pulsation free, medium pressure air. As the blowers work on sealed bearings, it does not require any lubrication. Hence, the delivered air is oil free.

BLOWERS FOR CEMENT PLANTS


Ring blowers play a key role in the moving, mixing, heating, and cooling processes of cement plants. Ring blowers provide clean, oil free, medium pressure, high volume air, for these applications at the fraction of cost of other options like compressed air.


BLOWERS FOR AQUACULTURE


Aquaculture pond aeration is vital to the vigorous health and vitality of fish. Without enough oxygen, survival of fish is not possible. Also, their growth rate slows. Further more, the lack of oxygen at the bottom of the pond will allow the build-up of fish waste and other organic nutrients. Aeration also removes the harmful dissolved chemicals, which affects the ponds in aquaculture. Ring blowers are ideal solutions for such aeration because they are energy efficient and they provide clean oil free air required for such application.
